Single Color Machines

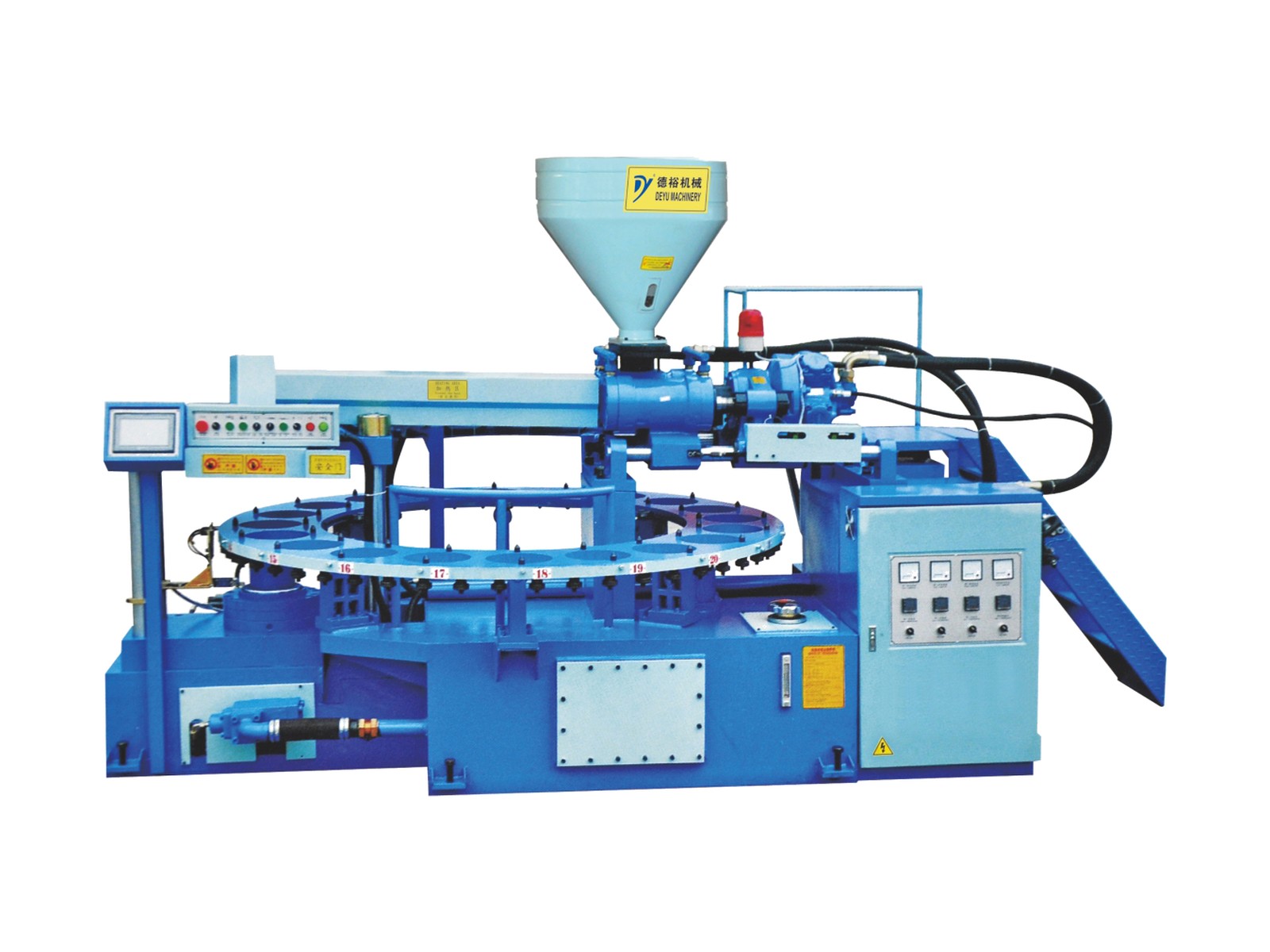

Full Automatic Rotary Type One Color Plastic Rubber Soles Injection Moulding Machine
High-output 20-station rotary single-color machine for PVC/TPR/TPU. 180 pairs/hour, large Φ75 screw. The DEYU workhorse for high-volume PVC sole production.
- 20 stations rotary disc
- Production: 180 pairs/hour (high volume)
- Large Φ75 screw — high injection volume per shot
- Materials: PVC / TPR / TPU (foamed or non-foamed)
- 20 independent station injection volume settings (computer-controlled)
- Low-noise low-speed high-torque hydraulic motor
- Stepless speed change
Teknik Özellikler
| Model | DY-1120A |
| Stations | 20 |
| Screw Diameter | Φ75 mm |
| Max Injection Capacity | 880 cm³/shot |
| Clamping Force | 55 tons |
| Max Injection Pressure | 660 kg/cm² |
| Productivity | 180 pairs/hour |
| Mould Dimension | 400 × 200 × 160 mm |
| Total Power | 33.3 kW |
| Machine Dimension | 4.2 × 2.1 × 2.0 m |
| Machine Weight | 4.2 tons |
| Oil Capacity | 450 L |
Uygulamalar
Sports shoesCasual shoesSafety shoesSandalsHigh-volume PVC production
