Industrial Heavy-Duty Machines

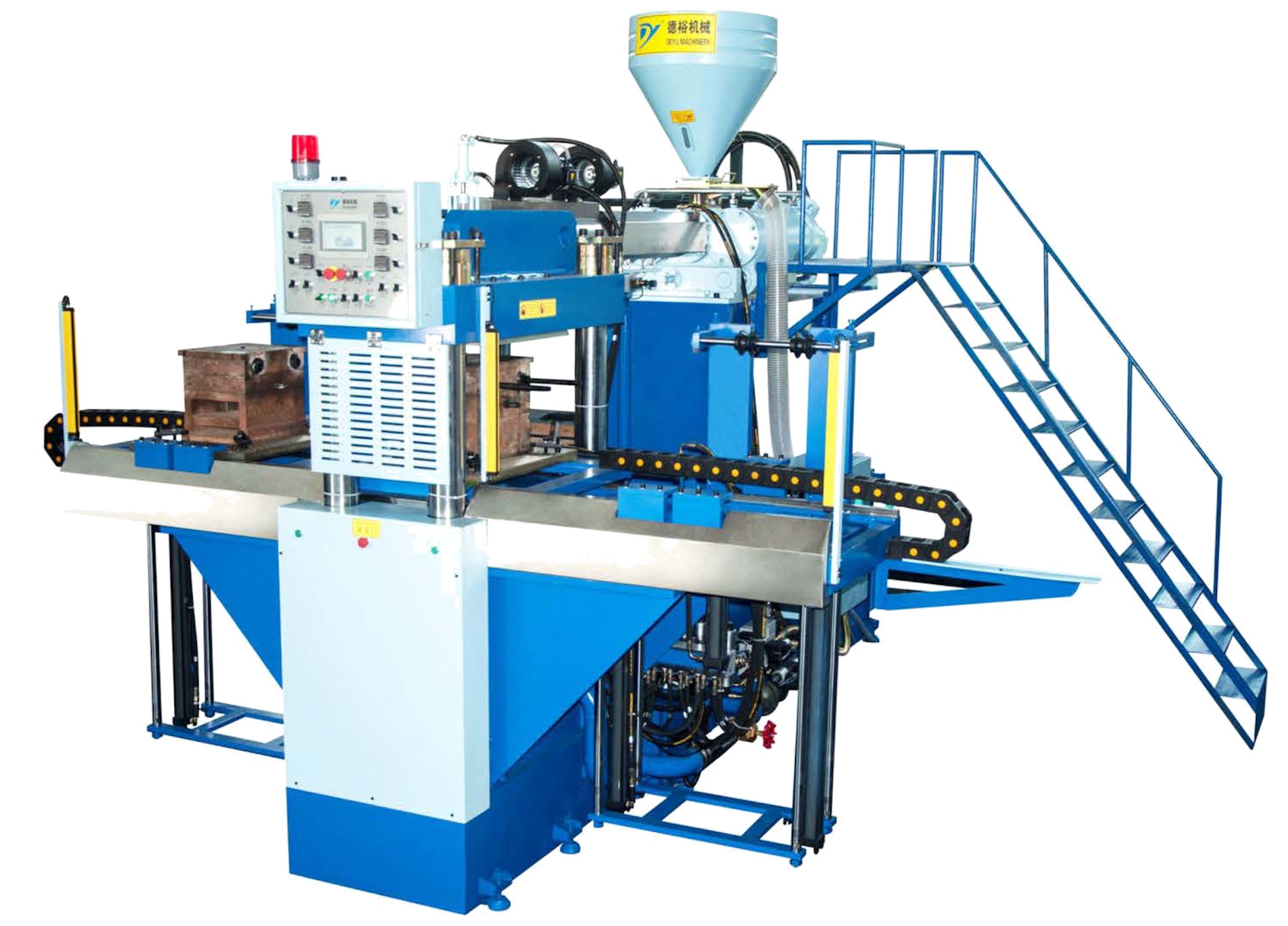

Fully Automatic Two-Station Slide Plastic Rubber Industrial Injection Moulding Machine — 400T
Heavy-duty 2-station slide industrial press with 400-ton clamping force and 9000cc injection capacity. Purpose-built for industrial parts: barbell plates, dumbbells, automotive seat cushions. NOT a shoe sole machine — a dedicated heavy-industrial production line.
- 2 stations slide design
- Heavy 400-ton clamping force
- Massive 9000 cm³/shot injection capacity
- Large Φ105 screw diameter
- Full electro-hydraulic servo system — fast response, energy saving
- Electronic ruler for precise material measurement
- Full automatic PLC computer control
- Brand-new automatic mould opening structure
- Materials: PVC / TPE / TPR / TPU and other thermoplastics
Technical Specifications
| Model | DY-1102-S |
| Stations | 2 (slide) |
| Screw Diameter | Φ105 mm |
| Max Injection Capacity | 9000 cm³/shot |
| Clamping Force | 400 tons |
| Injection Stroke | 700 mm |
| Minimum Mould Thickness | 200 mm |
| Left-Right Mould Opening Stroke | 850 mm |
| Ejector Stroke | 350 mm |
| Max Mould Dimension | 700 × 600 × 470 mm |
| Average Power | 35 kW |
| Machine Dimension | 5.0 × 5.7 × 3.2 m |
| Machine Weight | 14.6 tons |
| Oil Capacity | 500 L |
Applications
Barbell weight platesDumbbells (cast iron with rubber coating)Automotive seat cushionsHeavy industrial moulded partsFitness equipment OEM production
