Industrial Heavy-Duty Machines

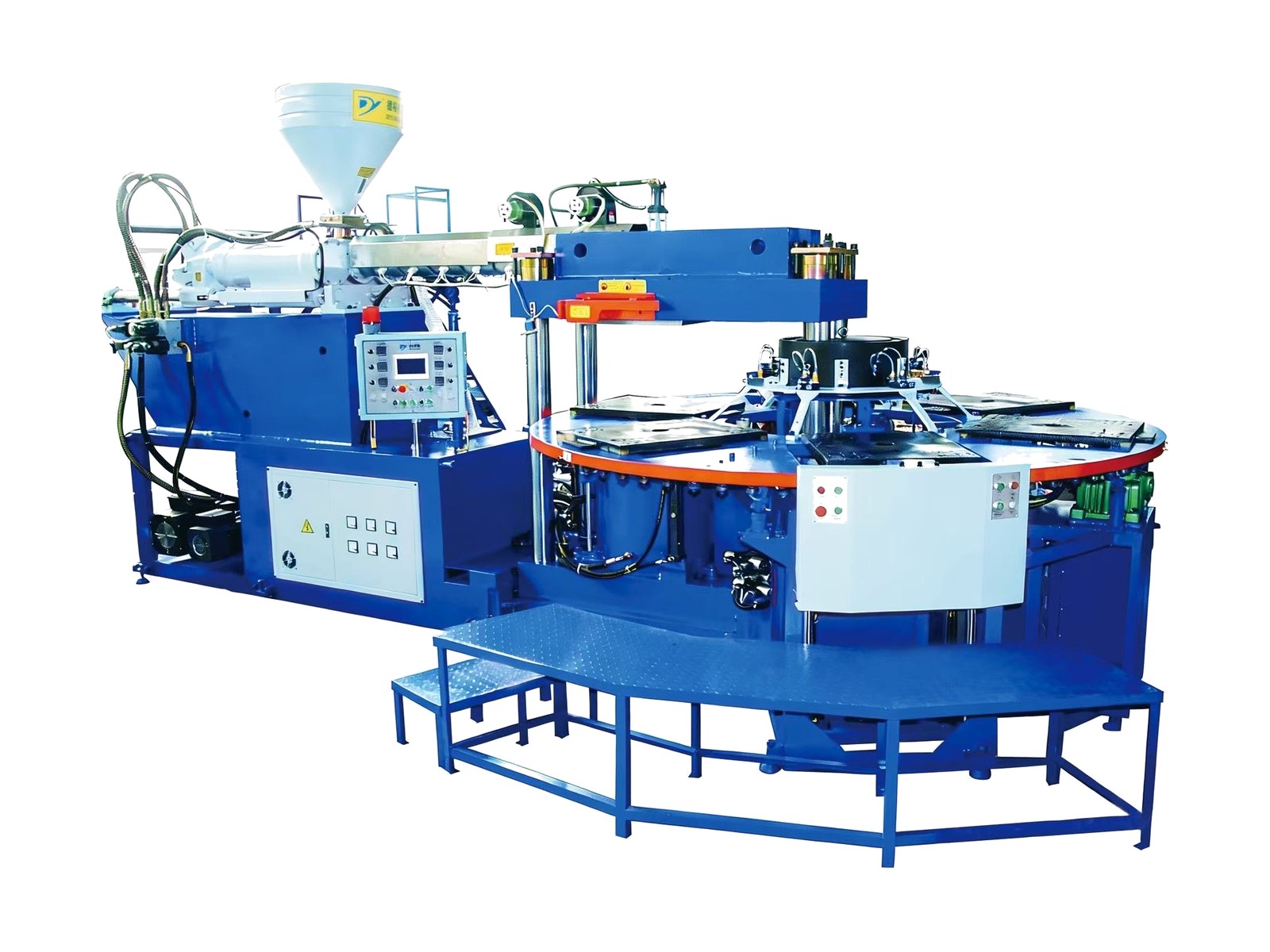

Fully Automatic Six-Station Water-Cooled Disc Industrial Injection Moulding Machine — 400T
Heavy-duty 6-station rotary disc industrial press with 400-ton clamping force, water-cooling, and 9000cc injection capacity. Higher-output sister to DY-1102-S. Purpose-built for dumbbells, barbell plates, automotive seat cushions, and other heavy industrial moulded parts.
- 6 stations rotary disc
- Heavy 400-ton clamping force
- Massive 9000 cm³/shot injection capacity
- Large Φ105 screw diameter
- Central water-cooling system — fast cooling
- Full electro-hydraulic servo system — fast response, energy saving
- Electronic ruler for precise material measurement
- Full automatic PLC computer control
- Brand-new automatic mould opening structure
- Materials: PVC / TPE / TPR / TPU and other thermoplastics
- Servo system saves 30%+ electricity
Technical Specifications
| Model | DY-1106-S |
| Stations | 6 (rotary disc) |
| Screw Diameter | Φ105 mm |
| Max Injection Capacity | 9000 cm³/shot |
| Clamping Force | 400 tons |
| Injection Stroke | 700 mm |
| Minimum Mould Thickness | 200 mm |
| Ejector Stroke | 350 mm |
| Max Mould Dimension | 650 × 600 × 470 mm |
| Average Power | 35 kW |
| Machine Dimension | 7.2 × 4.0 × 3.2 m |
| Machine Weight | 18 tons |
| Oil Capacity | 500 L |
Applications
Barbell weight platesDumbbells (rubber-coated)Automotive seat cushionsHeavy industrial moulded partsFitness equipment OEMHigher-volume industrial production
Request a Datasheet
Get the full technical datasheet and a personalised quote for the DY-1106-S.
Request Datasheet & QuoteNeed a Custom Quote?
Tell us your production capacity, sole type and material — we will recommend the right machine and send a quote within 24 hours.
