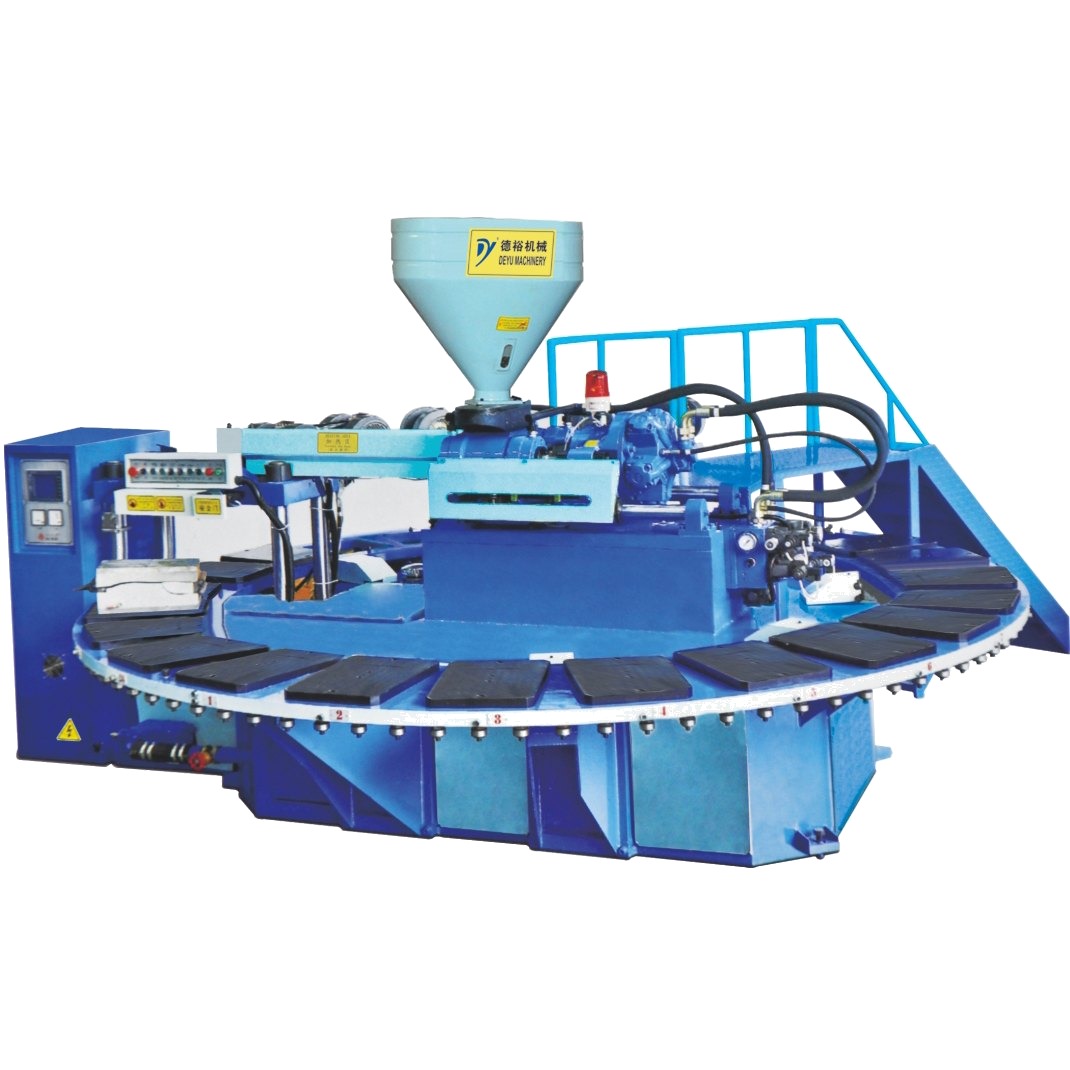

Full Automatic Rotary Type Plastic Air Blowing Injection Moulding Machine
24-station single-color air-blowing machine for slippers and sandals. 55T clamping with Φ65 screw. 130 pairs/hour. Produces lightweight, soft soles with 60%+ foaming rate.
- 24 stations rotary disc
- Air-blowing injection — lightweight, soft, smooth-faced products
- 60%+ foaming rate
- Production: 130 pairs/hour
- Recyclable raw materials (similar quality to virgin)
- LCD display + PLC auto-control
- Integrated oil tank — less floor space
- Ergonomic touchscreen man-machine interface
المواصفات الفنية
| Model | DY-1124B |
| Stations | 24 |
| Type | Air-blowing |
| Colors | 1 |
| Screw Diameter | Φ65 |
| Max Injection Capacity | 660 cm³/shot |
| Clamping Force | 55 tons |
| Max Injection Pressure | 890 kg/cm² |
| Productivity | 130 pairs/hour |
| Mould Dimension | 480 × 320 × 300 mm |
| Total Power | 31.5 kW |
| Machine Dimension | 4.29 × 4.7 × 2.175 m |
| Machine Weight | 5.5 tons |
| Oil Capacity | 600 L |
التطبيقات
SlippersSandalsBeach footwearLightweight casual footwearHigh-volume slipper production
